CYT1000AH 单段LED线性恒流控制芯片700V

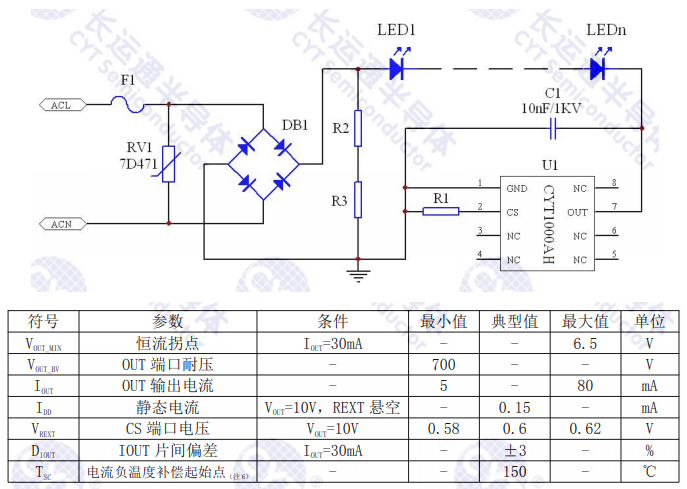

CYT1000AH is a Single Channel high voltage linear constant current LED driver, which integrates 700V high voltage MOS. The output current can be set through an external resistor between 5mA and 80mA.
CYT1000AH built-in linear type thermal protection function to effectively prevent damage to the system caused by high temperature.
CYT1000AH system has simple peripherals, flexible application, high reliability, small volume, low system BOM cost, adjustable packaging technology can be applied to all kinds of LED lamps.
The output current is adjustable, up to 80mA, and the constant current accuracy can reach 3%.
With over-temperature protection function
voltage 700V
No EMI problem
Chip and LED share aluminum substrate with simple circuit and high cost performance.
Package: ESOP-8
