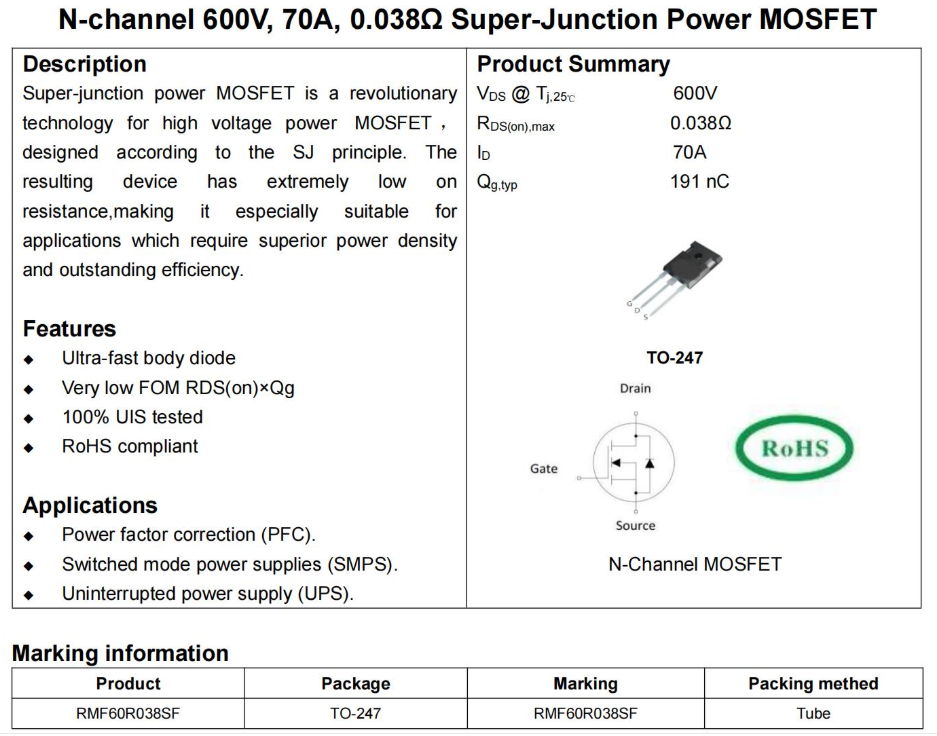

RMF60R038SF N沟道 600v 70A 超结功率MOSFET
产品描述：
超结 MOSFET
| Part Number | VDS (V) | ID (A) 25℃ | PD(W) 25℃ | RDS(ON)(mΩ) (VGS=10V)（Max） | Qg(nC)(VGS=10V) （Typ） | VGS(V) | VGS(th)(V) （Typ） | Package |
|---|---|---|---|---|---|---|---|---|
| RMC60R1K0SN | 600 | 4 | 30 | 1000 | 9.1 | 30 | 3.3 | TO-220F |
| RMG60R1K0SN | 600 | 4 | 37 | 1000 | 9.1 | 30 | 3.3 | TO-251 |
| RMA60R1K0SN | 600 | 4 | 37 | 1000 | 9.1 | 30 | 3.3 | TO-252 |
| RMC60R650SN | 600 | 7 | 32 | 650 | 13.3 | 30 | 3.3 | TO-220F |
| RMG60R650SN | 600 | 7 | 63 | 650 | 13.3 | 30 | 3.3 | TO-251 |
| RMA60R650SN | 600 | 7 | 63 | 650 | 13.3 | 30 | 3.3 | TO-252 |
| RMC60R380SN | 600 | 11 | 33 | 380 | 19.2 | 30 | 3.3 | TO-220F |
| RMG60R380SN | 600 | 11 | 118 | 380 | 19.2 | 30 | 3.3 | TO-251 |
| RMA60R380SN | 600 | 11 | 118 | 380 | 19.2 | 30 | 3.3 | TO-252 |
| RMC60R280SN | 600 | 15 | 34 | 280 | 26 | 30 | 3.3 | T0-220F |
| RMG60R280SN | 600 | 15 | 132 | 280 | 26 | 30 | 3.3 | TO-251 |
| RMA60R280SN | 600 | 15 | 132 | 280 | 26 | 30 | 3.3 | TO-252 |
| RMC60R190SF | 600 | 20 | 34 | 190 | 38.2 | 30 | 3.3 | TO-220F |
| RME60R190SF | 600 | 20 | 202 | 190 | 38.2 | 30 | 3.3 | TO-263 |
| RMF60R120SN | 600 | 25 | 350 | 120 | 45.5 | 30 | 3 | TO-247 |
| RMB60R120SN | 600 | 25 | 350 | 120 | 45.5 | 30 | 3 | TO-220 |
| RMF60R099SF | 600 | 36 | 304.8 | 99 | 81 | 30 | 3.5 | TO-247 |
| RMC60R099SF | 600 | 36 | 35 | 99 | 81 | 30 | 3.5 | TO-220F |
| RMF60R038SF | 600 | 70 | 694 | 38 | 191 | 30 | 4 | TO-247 |
| RMF60R026FD | 600 | 100 | 450 | 26 | 192 | 30 | 3.5 | TO-247 |
