RMC80R360SD RME80R360SD N沟道 800v 11A 超结功率MOS管
产品描述：
超结 MOSFET
| Part Number | VDS (V) | ID (A) 25℃ | PD(W) 25℃ | RDS(ON)(mΩ) (VGS=10V)（Max） | Qg(nC)(VGS=10V) （Typ） | VGS(V) | VGS(th)(V) （Typ） | Package |
|---|---|---|---|---|---|---|---|---|
| RMC80R900SD | 800V | 5 | 28 | 900 | 10.7 | 30 | 3.5 | TO-220F |
| RMA80R900SD | 800V | 5 | 63 | 900 | 10.7 | 30 | 3.5 | TO-252 |
| RMG80R900SD | 800V | 5 | 63 | 900 | 10.7 | 30 | 3.5 | TO-251 |

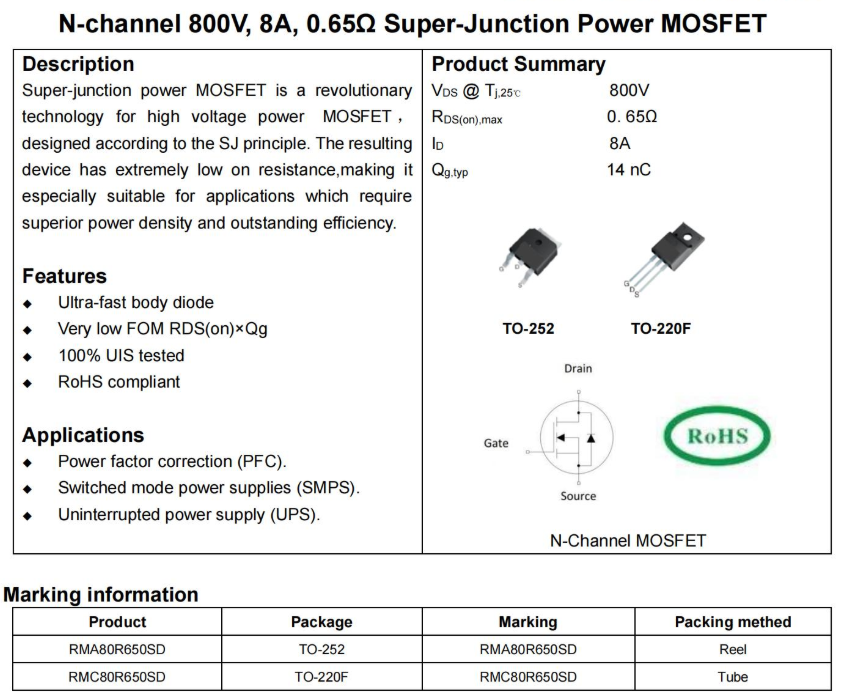

| RMC80R650SD | 800V | 8 | 31 | 650 | 14 | 30 | 3.5 | TO-220F |
| RMA80R650SD | 800V | 8 | 83 | 650 | 14 | 30 | 3.5 | TO-252 |
| RMC80R500SD | 800V | 9 | 31 | 500 | 24.6 | 30 | 3.5 | TO-220F |
| RMC80R250SD | 800V | 18 | 34 | 250 | 27 | 30 | 3 | TO-220F |
